Product Overview
DN15/15 to DN25/25
80mm
PN16
-10 to 100°C
Flushing bypass body - BSP Parallel
Strainers & Tailpieces - BSP Taper
Strainers & Tailpieces - BSP Taper
DZR Brass
*Please refer to Datasheet for full technical information

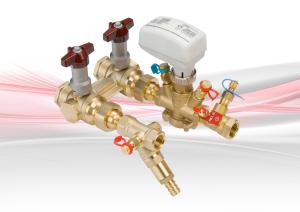

Z9801P & Z9801PF
DN15/15 to DN25/25
Dominator Peak Pro with PICV & Strainer Drain
- Compact, pre-fabricated unit – now available with Peak Pro PICV with a wide range of settable flows to suit all applications
- All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1. This provides reassurance of performance and accuracy within each valve
- Provides accurate flow rates & differential pressure control as well as flow measurement (Z9801PF), system flushing and isolation
- DZR H Body tested to 3.1X Design Working Pressure (DWP)and bronze H Body tested to 3.9 X DWP during development for design robustness and tested to EN12516-2 to comply with the Pressure Equipment Directive (PED)
- Fully assembled & factory tested unit reduces installation time, costs and specification risks
- Available with and without extension stems to suit customer specification
- Available in 400kPa & 800kPa rated variants
- On-Off, modulating or feedback actuators are available separately to match specification
