Product Overview
DN15 / DN20
PN25
0°C to 90°C
BSP Female Taper to BS EN 10226-2
DZR Brass Body
*Please refer to Datasheet for full technical information
DPC995
DN15 / DN20

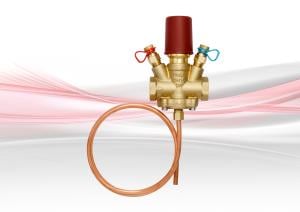

Differential Pressure Control Valve
- Comprehensive Differential pressure control ranges available
- Tested to a total system pressure drop of 800kPa
- Easy to set using a standard 5mm square radiator key
- Small footprint allows for easier installation through smaller and lighter design
- Confidence in design through comprehensive testing to BSRIA BTS01 and BS EN 12266-1
- ∆P and valve performance verified through integral test points
- Allows for best practice installation by being located on the return pipework
- No additional components required for installation, comes complete with capillary tube and 6mm compression adaptors
